Blackmagic-design의 신제품 H.264 Prorecorder

출처 : http://www.blackmagic-design.com/products/h264prorecorder/techspecs/

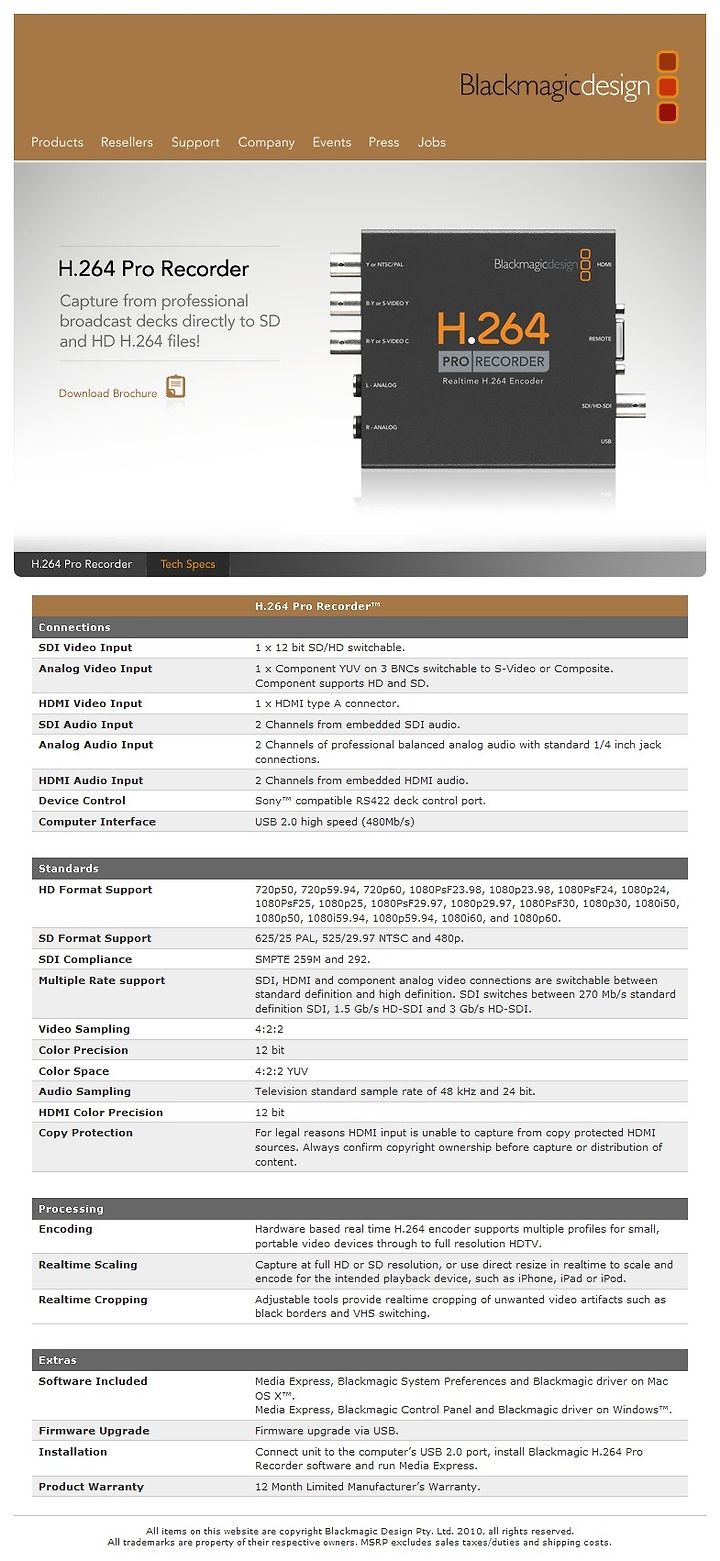

	H.264 Pro Recorder™
Connections
SDI Video Input	1 x 12 bit SD/HD switchable.
Analog Video Input	1 x Component YUV on 3 BNCs switchable to S-Video or Composite. Component supports HD and SD.
HDMI Video Input	1 x HDMI type A connector.
SDI Audio Input	2 Channels from embedded SDI audio.
Analog Audio Input	2 Channels of professional balanced analog audio with standard 1/4 inch jack connections.
HDMI Audio Input	2 Channels from embedded HDMI audio.
Device Control	Sony™ compatible RS422 deck control port.
Computer Interface	USB 2.0 high speed (480Mb/s)



Standards
HD Format Support	720p50, 720p59.94, 720p60, 1080PsF23.98, 1080p23.98, 1080PsF24, 1080p24, 1080PsF25, 1080p25, 1080PsF29.97, 1080p29.97, 1080PsF30, 1080p30, 1080i50, 1080p50, 1080i59.94, 1080p59.94, 1080i60, and 1080p60.
SD Format Support	625/25 PAL, 525/29.97 NTSC and 480p.
SDI Compliance	SMPTE 259M and 292.
Multiple Rate support	SDI, HDMI and component analog video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI and 3 Gb/s HD-SDI.
Video Sampling	4:2:2
Color Precision	12 bit
Color Space	4:2:2 YUV
Audio Sampling	Television standard sample rate of 48 kHz and 24 bit.
HDMI Color Precision	12 bit
Copy Protection	For legal reasons HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.



Processing
Encoding	Hardware based real time H.264 encoder supports multiple profiles for small, portable video devices through to full resolution HDTV.
Realtime Scaling	Capture at full HD or SD resolution, or use direct resize in realtime to scale and encode for the intended playback device, such as iPhone, iPad or iPod.
Realtime Cropping	Adjustable tools provide realtime cropping of unwanted video artifacts such as black borders and VHS switching.



Extras
Software Included	Media Express, Blackmagic System Preferences and Blackmagic driver on Mac OS X™. Media Express, Blackmagic Control Panel and Blackmagic driver on Windows™.
Firmware Upgrade	Firmware upgrade via USB.
Installation	Connect unit to the computer’s USB 2.0 port, install Blackmagic H.264 Pro Recorder software and run Media Express.
Product Warranty	12 Month Limited Manufacturer’s Warranty.
